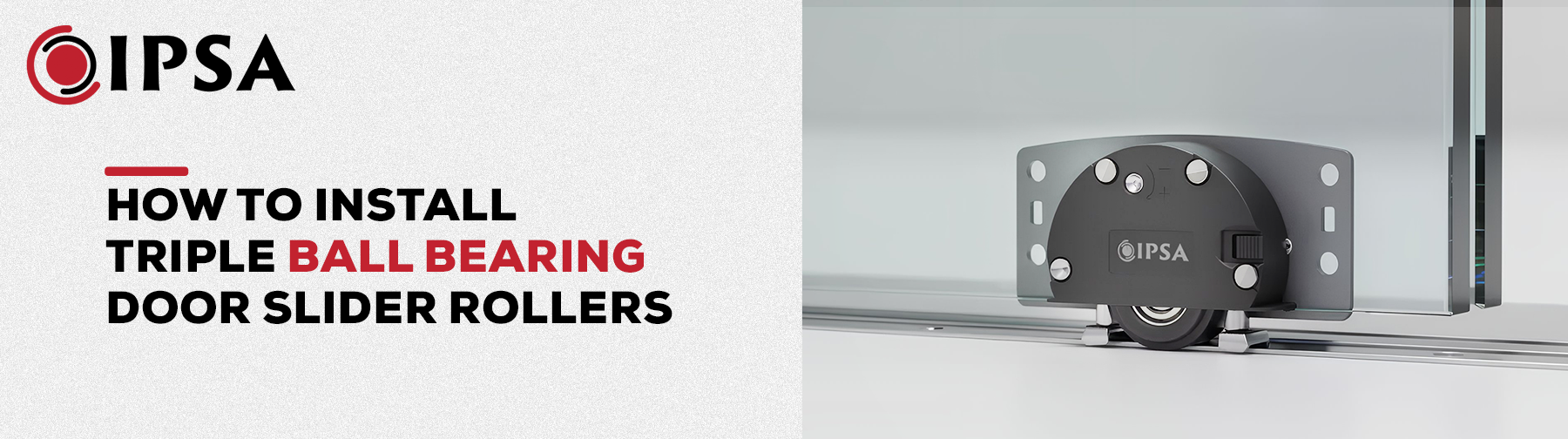

Installing triple ball bearing door slider rollers is a simple operation that elevates the movement and stability of the door. The process takes into account the removal of the door in a safe manner, roller fitting, and accurate height adjustment. A correctly executed job will see the door sliding effortlessly, maintaining a good balance, and being reliable every day.

Tools and Materials You Need

Prior to starting the work, collect all the tools you will need in one place. This way of preparation permits the working process to go on without interruptions.

• Door slider rollers: These are rollers that pass the door weight to the ground evenly and keep the sliding smooth for a long time.

• Measuring tape: By using this instrument, you are able to keep the distance the same on both sides, which helps in not tilting the door.

• Screwdriver or drill: This instrument is used to fasten the screws tightly, thus making the rollers stable during work.

• Level tool: This instrument is used to show that the door is in the correct position after the installation has been done.

• Pencil or marker: It is a very useful instrument in that it helps in marking the places where the screws are to be placed clearly and accurately.

Step-by-Step Installation Process

Step 1: Remove the Door Safely

Slide the door to one end of the track and remove it from there. Using one hand, lift the door gently while supporting its weight with the other hand. At the same time, slightly tilt the bottom outward until you detach it from the track. Put the door down on a clean and firm surface; this way, you can easily get to the roller area, and there is no risk of the door being damaged.

Step 2: Remove Old Rollers

Find the screws that are securing the old rollers. Using a screwdriver, loosen them one by one, while with your other hand, support the door edge. Pull out the old rollers carefully so as not to injure the material of the door. Look carefully at the rollers you have removed to get an idea of the places where the most wear occurs before you put in new ones.

Step 3: Clean the Roller Area

Before putting in new hardware, take a good look at the roller slots. Use a dry cloth or soft brush to remove dust, dirt, and debris. Dust-free rollers not only facilitate the proper placement of the rollers and thus ensure free movement but also make it easier for screws to grip tightly.

Step 4: Mark the New Roller Position

Temporarily fit the new roller into the slot to check alignment. Be sure it is facing straight along the door edge. Using a pencil, mark the holes for the screws distinctly. Precise points prevent the fixing from being uneven and thus greatly reduce the possibility of adjustment problems later on.

Step 5: Install the New Rollers

Put the roller in the slot, and line it up with the marks that you made. Roller being straight, the screws should be tightened slowly and evenly. Movement will be affected if overtightening is done, so be careful with this. At this point, the door sliding rollers, triple ball bearings, are instrumental in the even distribution of the door weight and thus the facilitation of smooth operation.

Step 6: Adjust Roller Height

Find the screw that is used for height adjustment, and it should be on the roller. By a turn of the screwdriver, one can raise or lower the door; of course, the turn should be gentle. Both sides should be adjusted symmetrically for balance. The right height adjustment is first and foremost a measure against the door dragging on the floor or rubbing the frame.

Step 7: Reinstall the Door

Hold the door properly and position the top edge into the track first. The bottom edge should be lowered slowly until it is in the right place. Try sliding the door back and forth to check if it moves. If the door is felt to be uneven or stiff, make small height adjustments.

Final Checks Before Use

Smooth Sliding Test

• Slide the door several times by the door: This serves to confirm steady and smooth movement.

• Ventilate your ears for any strange noise: Noise, most times, is the symptom of loose screws.

• Look at the door alignment once again: Good alignment is the main factor that keeps damages away from the future.

Common Installation Tips

• Make it a point to measure twice before drilling.

By doing this, you will not have to go back and fix the errors that you made.

• When adjusting, always use a level tool.

If the door is straight, then it will work better.

• When you are tightening screws, do it on both sides and evenly.

If you do this, then the pressure will be balanced, and the rollers will be able to last longer.

• Firstly, always select long-lasting hardware from your most trusted sellers.

Good quality parts give you better results.

If you are additionally intending to change storage fittings, you may buy stainless steel ball bearing drawer slider options for use in the long run.

Why Proper Installation Matters

By proper installation, a door becomes balanced and under control. It lessens the daily load on the rollers, and thereby, the need for maintenance is reduced. Also, fitting correctly increases safety and guarantees that the operation will be smooth in the future.

Conclusion

Accurately installed door sliding rollers triple ball bearing rollers, facilitating the sliding of the door to be easy, the support to be strong, and the service life to be long. When every step is carefully done, the door remains aligned and works silently. Proper adjustment and final inspection make daily use more convenient and trustworthy.
